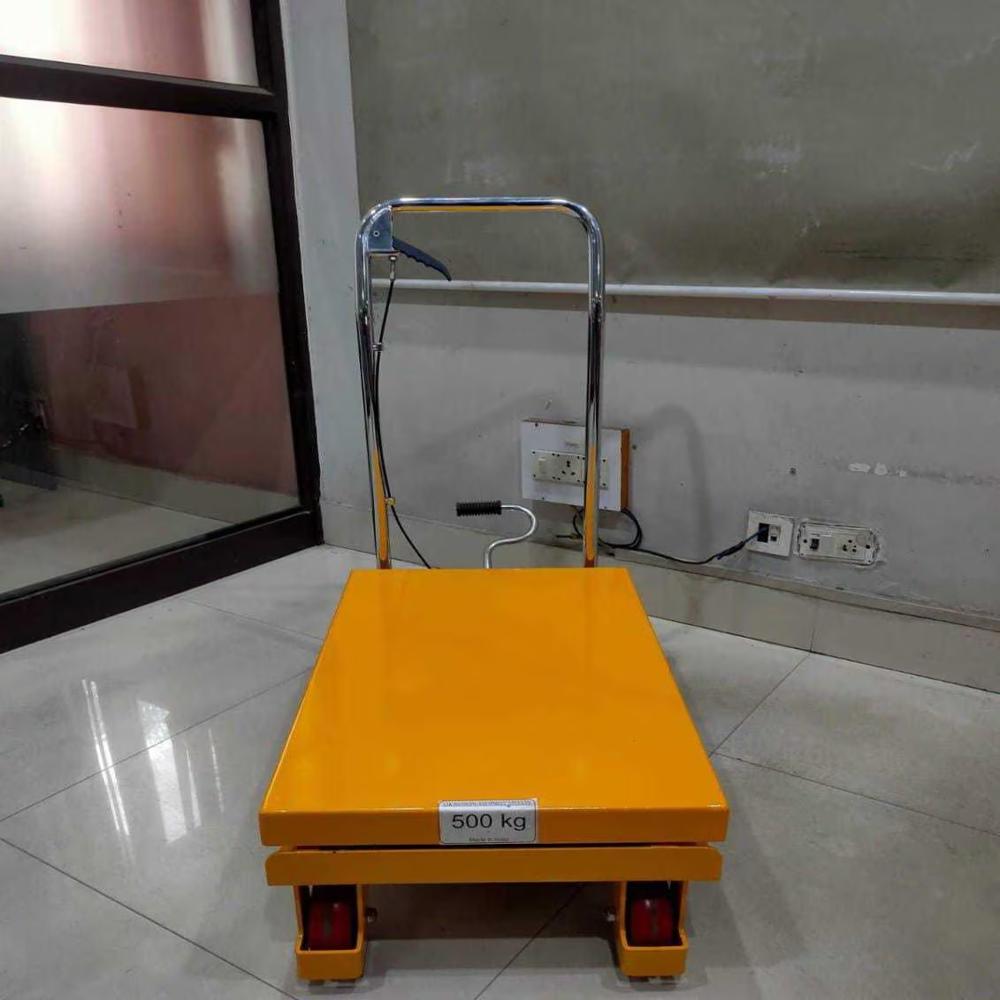

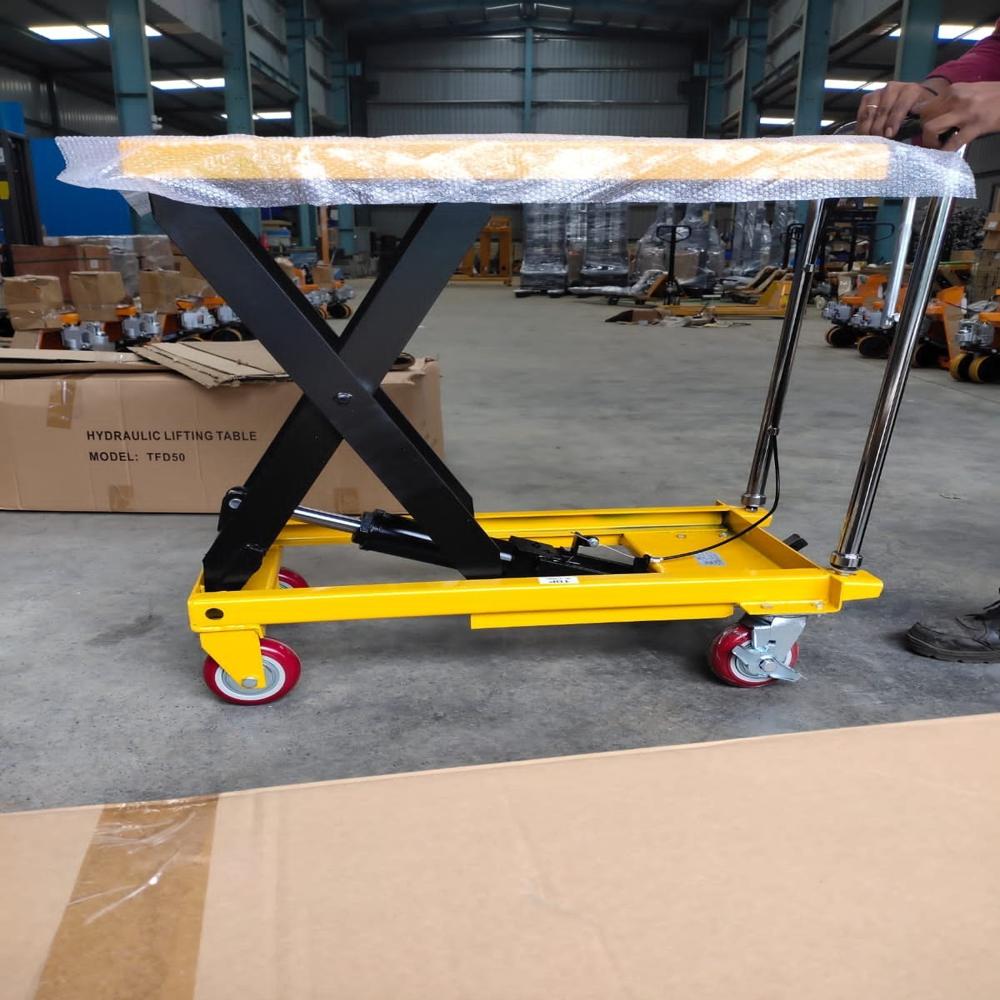

Hydraulic Scissor Lift

Introducing our high-performance Hydraulic Scissor Lift, expertly engineered to deliver astounding efficiency and safety to manufacturing, supplying, warehousing, and material handling industries. With over 9 years of industry experience, we specialise in catering to All India's diverse operational needs, offering product variants such as Die Ladder with Roller, Die Loader Scissor Trolley, Scissor Lift Table with Railing, Floor Mounted Scissor Lift Table, and Pit Mounted Scissor Table. Deal with us for robust durability and instant savings, as each lift is crafted for optimum load capacity, superb lifting heights, effortless mobility, and low-maintenance operation, ensuring maximum productivity. Personalise your order with custom configurations tailored to project specifications while benefiting from safety features like secure railing and stable pit or floor-mounted designs. Our scissor lifts are renowned for their compact footprint, astounding load stability, versatile applications, and compliance with stringent safety norms. Trust our experience as a superior manufacturer and supplier to experience exceptional performance, streamlined loading/unloading, and enhanced workplace safety. Choose our Hydraulic Scissor Lift for outstanding reliability and elevate your operations with an industry leader committed to instant savings, unmatched quality, and nationwide supply ability.

Die Loader Scissor Trolley

MOQ : 1 Unit

  • Capacity
  • 500 kg to 2000 kg
  • Car Dimension
  • Customizable - Standard: 1000 x 600 mm
  • Control Device
  • Other, Hand lever / Foot pedal
  • Drive Type
  • Hydraulic
  • Inclination
  • Flat
  • Load Capacity
  • 500 kg / 1000 kg / 1500 kg / 2000 kg
  • Material
  • other Sheet, Mild Steel / Stainless Steel (on request)
  • Max. Lifting Height
  • Up to 1700 mm
  • Max. Lifting Weight
  • 2000 kg
  • Mechanism Type
  • Scissor Lift
  • Noise Level
  • < 70 dB
  • Power Supply
  • AC Electric
  • Safety Device
  • Other, Safety overload valve, locking mechanism
  • Speed
  • 50-100 mm/s (lifting speed)
  • Type
  • Other, Manual or Battery operated
  • Usage
  • Other, Material handling, Die loading, Warehouse, Industrial application
  • Voltage
  • 220V / 380V
  • Working Temperature
  • -5C to +45C

Die Ladder with Roller

MOQ : 1 Unit

  • Capacity
  • Standard up to 150 kg
  • Control Device
  • Other, Manual handle/grip
  • Drive Type
  • Other, Manual/mechanical
  • Inclination
  • Standard positioning, not inclined
  • Load Capacity
  • 150 kg
  • Material
  • other Sheet, Stainless steel/aluminum alloy
  • Max. Lifting Height
  • Up to 5 meters
  • Max. Lifting Weight
  • 150 kg
  • Mechanism Type
  • Other, Manual mechanical ladder with roller
  • Noise Level
  • Less than 60 dB
  • Power Supply
  • Single phase
  • Safety Device
  • Other, Non-slip steps, stabilizer bars
  • Speed
  • Manual movement (operator controlled)
  • Step Width
  • 300 mm
  • Type
  • Other, Die Ladder with Roller
  • Usage
  • Other, Industrial/Workshop/Die maintenance
  • Voltage
  • 220V/240V AC
  • Working Temperature
  • -10C to 50C

Scissor Lift Table with Railing

MOQ : 1 Unit

  • Capacity
  • 500 kg to 2000 kg
  • Car Dimension
  • 1500 mm x 800 mm (customizable)
  • Control Device
  • Other, Push Button/Remote Control
  • Drive Type
  • Hydraulic
  • Load Capacity
  • Up to 2000 kg
  • Material
  • other Sheet, Mild Steel, Powder Coated Finish
  • Max. Lifting Height
  • 2000 mm to 4000 mm
  • Max. Lifting Weight
  • Up to 2000 kg
  • Mechanism Type
  • Other, Hydraulic Scissor Mechanism
  • Noise Level
  • < 70 dB
  • Power Supply
  • Electric, 3 Phase
  • Safety Device
  • Other, Emergency Stop, Safety Railings, Overload Valve
  • Speed
  • 4-6 m/min
  • Type
  • Other, Mobile/Stationary Scissor Lift Table
  • Usage
  • Other, Material Handling, Loading/Unloading, Industrial Warehouses
  • Voltage
  • 220V/380V/415V AC, 50/60Hz
  • Working Temperature
  • -10C to +50C

Floor Mounted Scissor Lift Table

MOQ : 1 Unit

  • Capacity
  • 1000 kg to 5000 kg
  • Car Dimension
  • Customizable platform size
  • Control Device
  • Other, Push button control panel
  • Drive Type
  • Hydraulic
  • Inclination
  • 0 (Flat)
  • Load Capacity
  • Up to 5 Tons
  • Material
  • other Sheet, High strength steel
  • Max. Lifting Height
  • up to 2000 mm
  • Max. Lifting Weight
  • 5000 kg
  • Mechanism Type
  • Other, Hydraulic scissor
  • Noise Level
  • <70 dB
  • Pit Depth
  • 180 mm - 350 mm
  • Power Supply
  • 3-Phase AC
  • Safety Device
  • Other, Overload protection, Emergency stop, Safety lock
  • Speed
  • 4 m/min
  • Type
  • Other, Floor Mounted
  • Usage
  • Other, Material handling, workshop, assembly line
  • Voltage
  • 380V / 220V
  • Working Temperature
  • -15C ~ 55C

Pit Mounted Scissor Table

MOQ : 1 Unit

  • Capacity
  • 1000 kg
  • Car Dimension
  • Customized as per requirement
  • Control Device
  • Other, Push Button / Remote Control
  • Drive Type
  • Hydraulic
  • Load Capacity
  • Upto 5000 Kg (Customizable)
  • Material
  • other Sheet, Mild Steel / Stainless Steel Platform
  • Max. Lifting Height
  • 1600 mm
  • Max. Lifting Weight
  • Upto 5000 Kg
  • Mechanism Type
  • Other, Hydraulic Scissor
  • Noise Level
  • 70 dB
  • Pit Depth
  • 200-350 mm
  • Power Supply
  • Electric, Three Phase AC
  • Safety Device
  • Other, Emergency Stop, Safety Cut-off, Anti-skid Platform, Safety Guardrails
  • Speed
  • 4-6 meters per minute
  • Type
  • Other, Pit Mounted Scissor Table
  • Usage
  • Other, Industrial Material Lifting, Warehouse, Loading Bay
  • Voltage
  • 380V / 415V, 3 Phase
  • Working Temperature
  • -10C to +50C
